CVSTGUITimer Class Referencefinal

A timer class, which posts timer messages to CBaseObjects or calls a lambda function (c++11 only). More...

#include <cvstguitimer.h>

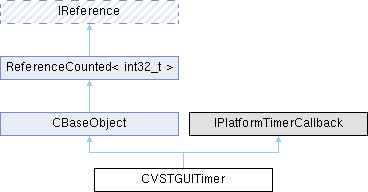

+ Inheritance diagram for CVSTGUITimer:

Public Types

using CallbackFunc = std::function<void(CVSTGUITimer*)>


Public Member Functions

 CVSTGUITimer (const CallbackFunc &callback, uint32_t fireTime=100, bool doStart=true)

 CVSTGUITimer (CallbackFunc &&callback, uint32_t fireTime=100, bool doStart=true)

 CVSTGUITimer (CBaseObject *timerObject, uint32_t fireTime=100, bool doStart=false)

bool start ()
 starts the timer

bool stop ()
 stops the timer, returns whether timer was running or not

bool setFireTime (uint32_t newFireTime)
 set fire time in milliseconds

uint32_t getFireTime () const
 get fire time in milliseconds

CBaseObjectnewCopy () const override

- Public Member Functions inherited from CBaseObject
 CBaseObject ()=default

 ~CBaseObject () noexcept override=default

 CBaseObject (const CBaseObject &)

CBaseObjectoperator= (const CBaseObject &)

virtual CMessageResult notify (CBaseObject *sender, IdStringPtr message)

- Public Member Functions inherited from ReferenceCounted< int32_t >
 ReferenceCounted ()=default

virtual ~ReferenceCounted () noexcept=default

 ReferenceCounted (const ReferenceCounted &)

ReferenceCountedoperator= (const ReferenceCounted &)

 ReferenceCounted ()=default

 ReferenceCounted (const ReferenceCounted &)

virtual ~ReferenceCounted () noexcept=default

ReferenceCountedoperator= (const ReferenceCounted &)

void forget () override
 decrease refcount and delete object if refcount == 0

void remember () override
 increase refcount

virtual int32_t getNbReference () const
 get refcount

void forget () override
 decrease refcount and delete object if refcount == 0

void remember () override
 increase refcount

virtual int32_t getNbReference () const
 get refcount


Static Public Attributes

static IdStringPtr kMsgTimer = "timer fired"
 message string posted to CBaseObject's notify method


Protected Member Functions

 ~CVSTGUITimer () noexcept override

void beforeDelete () override

void fire () override


Protected Attributes

uint32_t fireTime

CallbackFunc callbackFunc

PlatformTimerPtr platformTimer


Detailed Description

A timer class, which posts timer messages to CBaseObjects or calls a lambda function (c++11 only).

Member Typedef Documentation

◆ CallbackFunc

using CallbackFunc = std::function<void(CVSTGUITimer*)>

Constructor & Destructor Documentation

◆ CVSTGUITimer() [1/3]

CVSTGUITimer ( const CallbackFunc & callback,
uint32_t fireTime = 100,
bool doStart = true )

◆ CVSTGUITimer() [2/3]

CVSTGUITimer ( CallbackFunc && callback,
uint32_t fireTime = 100,
bool doStart = true )

◆ CVSTGUITimer() [3/3]

CVSTGUITimer ( CBaseObject * timerObject,
uint32_t fireTime = 100,
bool doStart = false )

◆ ~CVSTGUITimer()

~CVSTGUITimer ( )
overrideprotecteddefaultnoexcept

Member Function Documentation

◆ beforeDelete()

void beforeDelete ( )
overrideprotectedvirtual

Reimplemented from ReferenceCounted< int32_t >.

◆ fire()

void fire ( )
overrideprotected

◆ getFireTime()

uint32_t getFireTime ( ) const
inline

get fire time in milliseconds

◆ newCopy()

CBaseObject * newCopy ( ) const
inlineoverride

◆ setFireTime()

bool setFireTime ( uint32_t newFireTime)

set fire time in milliseconds

◆ start()

bool start ( )

starts the timer

◆ stop()

bool stop ( )

stops the timer, returns whether timer was running or not

Member Data Documentation

◆ callbackFunc

CallbackFunc callbackFunc
protected

◆ fireTime

uint32_t fireTime
protected

◆ kMsgTimer

IdStringPtr kMsgTimer = "timer fired"
static

message string posted to CBaseObject's notify method

◆ platformTimer

PlatformTimerPtr platformTimer
protected

The documentation for this class was generated from the following files:
